Features
Intel® Core™ i3-N305(6M Cache,up to 3.8GHz)
Intel® N97(6M Cache,up to 3.6GHz)
Intel® N100(6M Cache,up to 3.4GHz)
支持1 x SO-DIMM DDR4-3200，最大支持16GB
支持4个千兆网络
支持DP/HDMI 扩展同步于/异步显示/双显
支持M.2 SSD, mSATA, MiniPCIE Wifi, MiniPCIE，3052 5G
10~36VDC
Industrial computer manufacturer
-
TEL：400-868-0008
PRODUCTS
NEWS
- PRODUCTS
- NEWS
Specifications
System
| Processor | Intel® Core ™ i3-N305(6M Cache,up to 3.8GHz) Intel® N97(6M Cache,up to 3.6GHz) Intel® N100(6M Cache,up to 3.4GHz) |
| Memory | 1 x SDRAM DDR4 3200 MHz (max. 16G) |
| Graphics | Integrated Intel® UHD Graphics |
| Storage | 1 x M.2 2242 SSD ，1 x mSATA |
| OS | Windows 10,Windows 11, Ubuntu22.04 |
| Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min |
External I/O
| Ethernet | 1 x RJ45 Intel i210-AT GbE (10/100/1000 Mbps) 3 x RJ45, Intel® i226-v GbE (10/100/1000 Mbps) |
| Video | 1 x HDMI , up to 4Kx2K@60Hz 1 x DP, up to 4096x2304@60Hz |
| Audio | 1 x Audio(Line-out & Mic-in ) ( 芯片888S/897) |

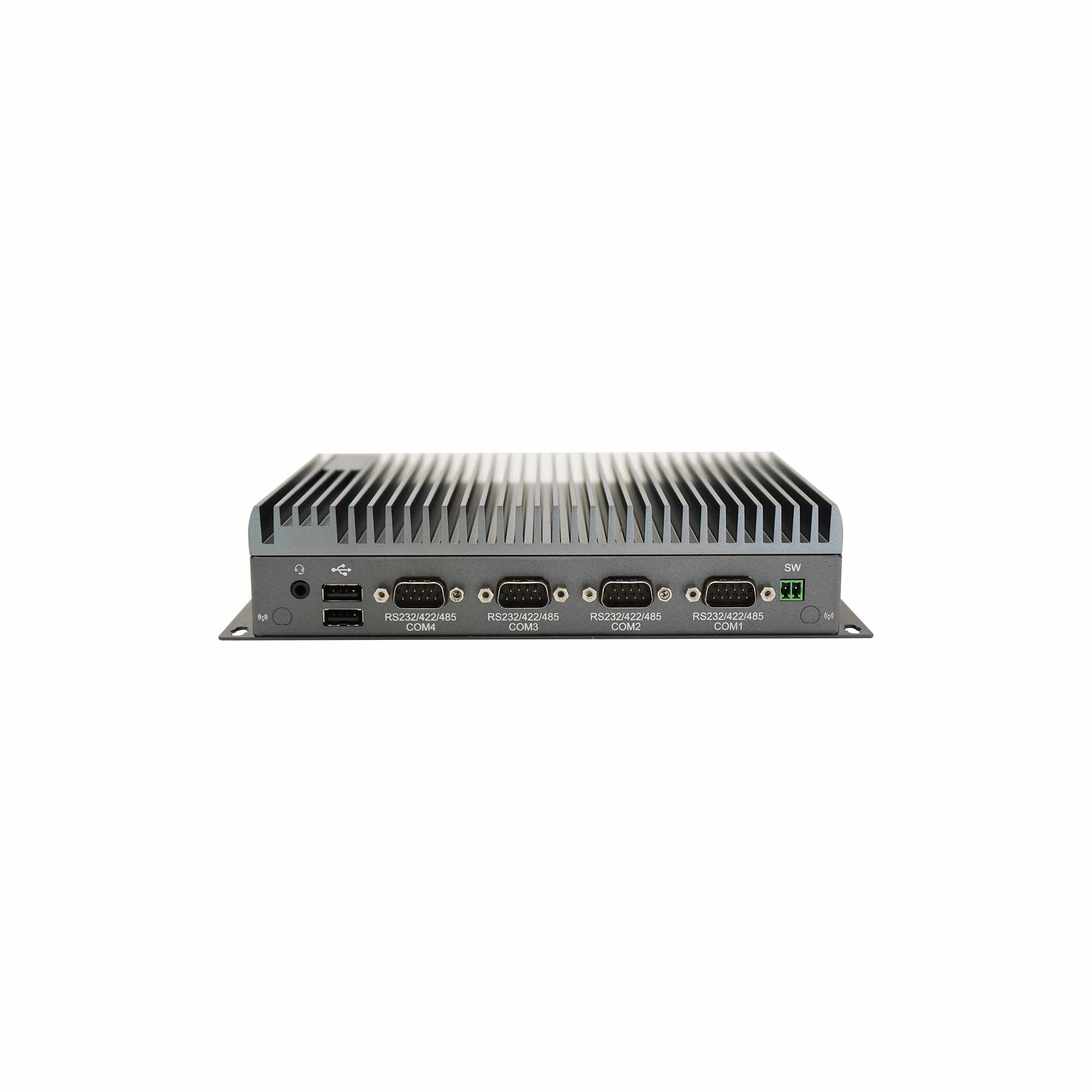

| COM | 4 x RS-232/422/485 (default RS-232) with auto flow control |
| USB | 2 x USB3.2 Gen. 2 4 x USB2.0 |
| Button | 1 x Power button W/Led |
| Remote ON-OFF | 1 x SW |
Internal I/O
| Expansion | 1 x mPCIe (PCIe/ USB2.0/mSATA signal supported) 1 x 3052 5G (USB3.0 signal supported) |
| GPIO | 1 x 8bit programmable GPIO pin header 【3.3 | 5V Jump adjustable】 |
| SIM | 1 x SIM Card socket for 3G/4G module 1 x SIM Card socket for 5G module |
| COM | 2 x COM232 by Pinhead |
Extension module
| Extension Module A (optional) | 16DI-16DO (1) 输入电压 DC 5-24V ，LPC 方案，理论响应时间≤ 2ms (2) 输入频率≤ 500Hz；隔离等级：16 x 隔离 DI, 16 x 隔离 DO，DI 3000Vrms，DO 2450Vrms (3) 制式切换：兼容 PNP 和 NPN 传感器输入, NPN 和 PNP 可选 , 程式切换； (4) 驱动能力：NPN 最大可达 350mA, PNP 最大可达 500mA |
扩展槽
Environmental
| OperatingTemp. | -20℃ ~ 60℃ (SSD) |
| Storage Temp. | -40℃ ~ 85℃ |
| Relative Humidity | 5% ~ 95%, 非凝结状态Non-condensing |
| Vibration | SSD: 5~500Hz, 2Grms operation |
| Shock | Operation: 10G@11ms Non-operation: 30G@11ms |
Power
| Power Input | 10~36VDC, 2-pin phoenix connector |
Mechanical
| Housing | 铝合金 Aluminum Alloy |
| Mounting | Desk-Mount, Wall-Mount, DIN-Rail(optional) VESA-mount (75 x 75mm,100 x 100mm optional) |
| Dimension | 224 x 140 x 46.2 mm ( 单层基础款) 224 x 140 x 70 mm ( 两槽扩展款) |
| Weight | 1.6 kg |
Certification
| Safety Certification | CCC, CE, FCC |
Order List
| 标配 Standard | 型号 Model | 描述 Description |
| 2G151DE00-HUH-G | 1 x M2-2242_THERMAL-PAD_28*26*2 | |
| 2G151DS00-HUH-G | 2 x Memory_thermal-pad_3w-1_5,HS300 3W/mk,57*12.5*1.5 | |
| 34046QH00-GLA-G | 1 x 2pin DC-IN公头Connector,5mm | |
| 34046QJ00-600-G | 1 x 2pin DC-IN SW Connector,3.5mm | |
| 2A584QQ00-G7D-G | 2 x P頭螺絲M3*3_耐落,pan head screw M3*3_tslg-nylok,carbon steel | |
| 2A582LB00-G7D-G | 1 x SCREW I HEAD M2*P0.4*3L,LFNI NYLOCK | |
| 2A583SB00-G7D-G | 4 x 螺絲,SCREW,SWRCH18A,M3X4,3.1mm,Machine,Nickel Plating |
| 选配 Optional | 型号 Model | 描述 Description |
| CTO-060W-LT00 | CEA-060W-LT00,LITEON 60W adapter,150cm power cord | |
| CTO-060W-HK00 | CEA-060W-HK00,60W Adapter for Huntkey,150cm power cord | |
| 35105R800-JTU-G | 8bit GPIO Cable (DB9 Connect ) | |
| 35107YP00-JTU-G | 2*RS232 Y Cable |
