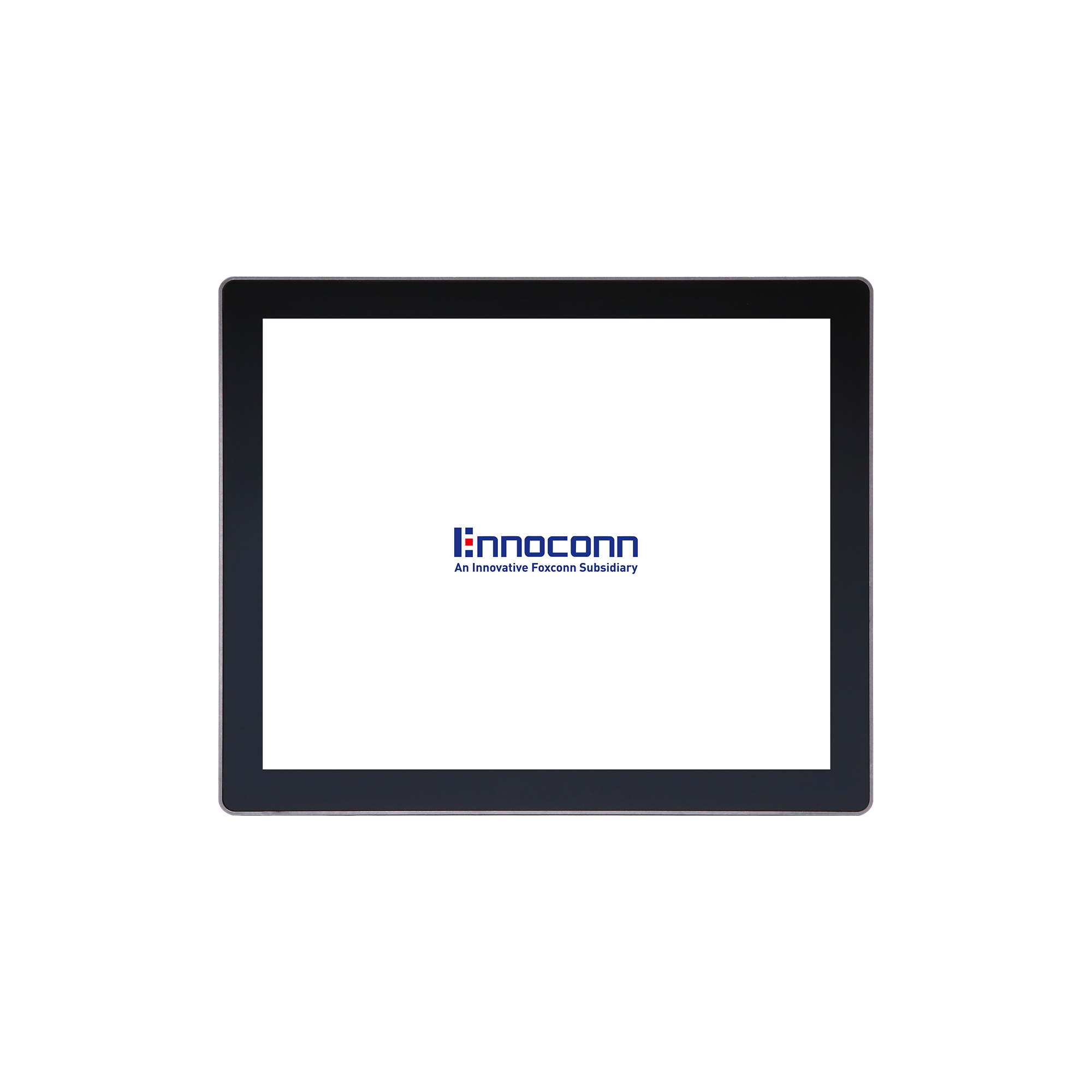

CEP-17RS-TGLU

工业平板电脑CEP&CESP系列 >CEP系列 >17 inch

工业无风扇触摸一体机，采用17" 全平面五线电阻屏，Intel® 11代 Intel® Core™ Tiger lake U i7/i5/i3 处理器

Get Price

Download

Home

>

工业平板电脑CEP&CESP系列

>

CEP系列

>

17 inch

Features

板载11代 Intel^® Core™ Tiger lake U i7/i5/i3 处理器
17英寸 LED背光显示屏，前面框支持IP66防护等级
铝合金的机身使其轻薄、坚固稳定、散热效果更好
工业等级五线全平面电阻触摸屏
内置Mini-PCIe/M.2 2230/M.2 2242 支持多种模块扩展
支持三个千兆网口
宽压10-36V DC-IN，可锁附凤凰端子接口
支持远程开关
产品外壳接地保护
内置2个3W 4Ω Speaker
内置1 x 2.5寸HDD/SSD可扩充支架
支持标准VESA及嵌入式安装方式

Specifications

System

Processor	i3-1115G4 3.0G (2 Cores, 6M Cache, up to 4.1GHz) i5-1135G7 2.4G (4 Cores, 8M Cache, up to 4.2GHz) i7-1165G7 2.8G (4 Cores, 12M Cache, up to 4.7GHz) i5-1145G7E 1.5G (4 Cores, 8M Cache, up to 4.1GHz)
Memory	1 x DDR4 3200 MHz SO-DIMM, up to 32 GB
Storage	1 x 2.5" SATA3.0 HDD/SSD 1 x M.2 2242 SSD slot
Graphics	Intel^® UHD Graphics for 11th Gen, Intel^® Processors & Intel^® Iris^® Xe Graphics
OS	Windows 10, Linux
Watchdog Timer	Programmable 255 levels timer interval, from 1~255 sec/min

Display

Size	17 inches
Resolution	1280(H) x 1024(V)
Ratio	4：3
Brightness	250 nits
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Contrast Ratio	1000
Backlight	LED Backlight
Backlight Lifetime	50000Hrs

Touchscreen

Touch Type	全平面五线电阻屏 5-Wire Resistive Touch
Touch	35,000,000 times

External I/O

COM	2 x RS232/422/485 (COM1/2) with DB9 2 x RS232/RS485, 2 x RS232 with 12PIN Phoenix connector
USB	4 x USB 3.1
Ethernet	1 x RJ45 Intel^® I226V Gbe (10/100/1000 Mbps) 2 x RJ45 Intel^® I210-AT Gbe (10/100/1000 Mbps)
Video	1 x HDMI (up to 4096 x 2304@60Hz)
Audio	1 x Audio(Line-out&Mic-in 2 in 1), ALC888S 2 x Speaker 4Ω3W
Reset	1 x OS reset
Power bottom	1 x Power button W/LED( System 上电 -LED OFF/Power ON-LED ON/Power OFF-LED OFF)
Remote ON-OFF	1 x Remote ON-OFF
Power Input	1 x Power Connector (2P Phoenix)

Internal I/O

Expansion

1 x Mini-PCIe (PCIe/USB2.0 signal supported) 1 x M.2 Key-E 2230 slot (WiFi +BT supported) 1 x SIM socket 1 x 8Bit GPIO

Mechanical

Front Panel	铝 Aluminum
Heat-Sink	铝 Aluminum
Rear Cover	铁 SECC
Mounting	Panel Mount, Wall and VESA-mount (100 x 100mm)
Dimension	392.4(W) x 327.7(H) x 66(D)mm
Cut Out	382.2 x 317.5mm
Weight	5.53Kg

Environmental

Operation Temp.	-10℃ ~ 50℃ (SSD), 0℃ ~ 40℃ (HDD)
Storage Temp.	-40℃ ~ 70℃
Relative Humidity	5% ~ 95%, 非凝结状态 Non-condensing
Random Vibration	5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation
Sine Vibration	5~500Hz, 2G Non-operation
Shock	10g 11ms operation, 30g 11ms Non-operation
Ingress Protection	Front panel IP66

Power

Power Input

10-36V DC

Certification

Safety Certification

FCC/CE/CCC

电磁兼容/安规 EMC&Safety

Configuration

型号 Model	处理器 CPU
CEP-17RS-111A	Intel^® Core ™ i3-1115G4 3.0G (6M Cache,up to 4.1GHz)
CEP-17RS-113A	Intel^® Core ™ i5-1135G7 2.4G (8M Cache,up to 4.2GHz)
CEP-17RS-116A	Intel^® Core ™ i7-1165G7 2.8G (12M Cache,up to 4.7GHz)
CEP-17RS-114A	Intel^® Core ™ i5-1145G7E 1.5G (8M Cache, up to 4.1GHz)

Order List

标配 Standard	型号 Model	描述 Description
	34046QH00-GLA-G	1x2P DC in Phoenix conn（5.00）, female
	2G151DT00-HUH-G	1 x M2-2242 thermal-pad
	2G151DS00-HUH-G	1 x Memory thermal-pad
	2A583SB00-G7D-G	4 x M3*4 SCREW for HDD
	2A5868R00-G7D-G	4 x M4*8 SCREW for VESA
	1A03DV400-88A-G	2 x panel hook（4pcs in 1 package）
	34046QJ00-600-G	1 x Conn,3.5mm,PA,DIP-2,FIT,TEPE123-11G00-DF

选配 Optional	型号 Model	描述 Description
	CTO-090W-HK00	Adapter, 100V-240V, 12V, 90W, 2PIN 凤凰端子头, 1.5M, HK
	CTO-090W-LT00	Adapter,100V-240V, 12V, 90W, 2PIN 凤凰端子头, 1.5M, LT
