CEFS-RA31-W48A-4U

高效能多扩展工控机CEFS系列 >上架型 >4U IPC-420

4U 标准上架式工业计算机, 三显(VGA/DVI-D/DP++)，三网口， 14 x USB， 6 x COM，多扩展

Get Price

Download

Home

>

高效能多扩展工控机CEFS系列

>

上架型

>

4U IPC-420

Features

Intel^®10代酷睿 i9/i7/i5/i3/至强^®处理器, 功耗最高支援到125W, 支持intel vPro
双通道4插槽 DDR4 ECC/Non-ECC 2400/2666/2933MHz, 高达128GB(酷睿 i5/i7/i9只支持Non-ECC)
支持VGA, DVI-D, DP++三屏显示
支持三Intel GbEs, USB3.2 Gen1/2, 16位GPIO
内置PCI,PCIe插槽，支持多种模块扩展
抗震动磁盘架设计，可支持1个5.25寸光驱、2个2.5"SSD、3个3.5"HDD硬盘
前部可访问 USB接口，更易于数据传输
海岸线上的USB端口支持Ennoconn USB SR Pro

Specifications

System

Processor	Intel^® 10th Gen Core ™ i9/i7/i5/i3/Xeon^®Processor, LGA1200, TDP up to 125W
Chipset	Intel^® W480E
Memory	4 x DDR4 ECC/Non-ECC 2400/2666/2933 MHz U-DIMM Slot, up to 128GB (Core ™ i5/i7/i9 only support Non-ECC)
Graphics	Intel^® UHD Graphics 630
Storage	4 x SATA 3.0, 1 x M.2 (SATA3.0/PCIe 3.0 x 4) 2242/2280
OS	Windows 10, Linux
Watchdog Timer	System Reset, Programmable via software from 1 to 255 seconds
TPM	Nuvoton TPM2.0(optional, need MOQ)

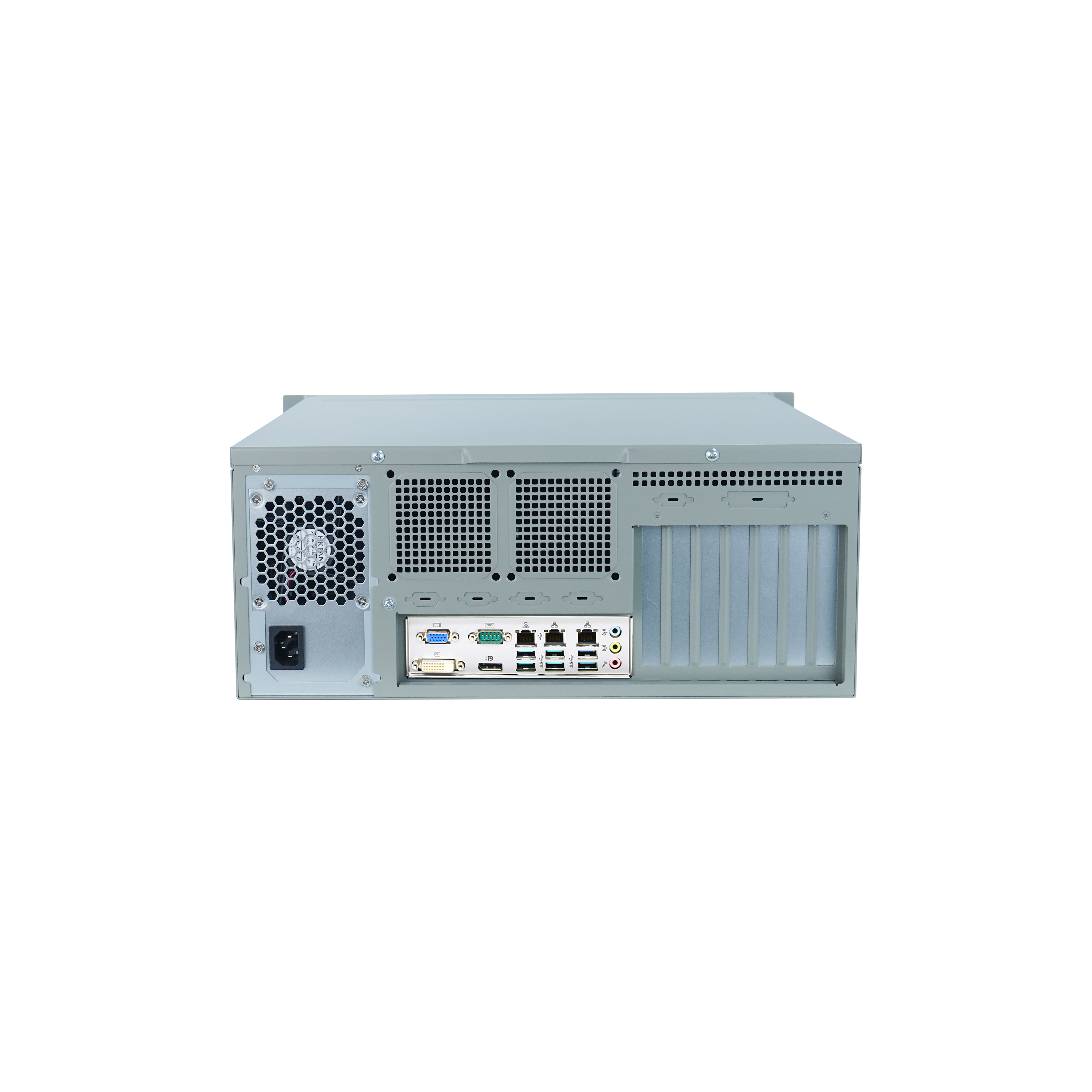

External I/O

Ethernet	1 x Intel^® i219-LM GbE, 2 x Intel^® i211-AT/i210-AT (10/100/1000 Mbps)
Video	1 x DVI-D: max resolution up to 1920 x 1200 @ 60Hz 1 x VGA: max resolution up to 1920 x 1200 @ 60Hz 1 x DP++: max resolution up to 4096 x 2304 @ 60Hz
Audio	1 x Line-out, Line-in, Mic-in
COM	1x RS232/422/485 (with auto flow control)
USB	6 x USB3.2 Gen2, 2 x USB2.0
Button	1 x Power Button, 1 x Reset Button
LED	1 x Power LED, 1 x HDD LED

Internal I/O

Expansion	2 x PCIe3.0 X16 (1 x 16 or 2 x 8 link), 3 x PCIe X4 (X4 link), 2 x PCI
FAN	1 x CPU Fan, 2 x System Fan
USB	6 x USB2.0 (1 x Type-A)
GPIO	1 x 16 bit GPIO
COM	1x RS232/422/485 (with auto flow control), 2 x RS232/485,2 x RS232
LPT	1 x LPT
PS/2	1 x PS/2 (keyboard and mouse)

Environmental

Operating Temp.	0℃ ~ 40℃
Storage Temp.	-20℃ ~ 60℃
Relative Humidity	5% ~ 95%, 非凝结状态Non-condensing
Random Vibration	5~500Hz, 1Grms (HDD)operation
Sine Vibration	5~500Hz, 2G Non-operation
Shock	10G @ 11ms operation

看门狗定时器 Watchdog Timer

Power

Power Input	100~240V(AC)
Power Watt	300W

Mechanical

Housing	SECC 1.2mm
Dimension	480.8(W) x 177(H) x 478.6(D) mm
Weight	15kg( 约)
Mounting	机柜式 (Rack-Mount)

Certification

Safety Certification

CCC&CE&FCC

Configuration

Order List

标配 Standard	型号 Model	描述 Description
	35074KN00-704-G	AC Power Cable,1500mm,+70/-0mm,I-SHENG,T
	35091QW00-0R3-G	S-ATA Signal Cable Assembly,400mm,+/-20mm

选配 Optional	型号 Model	描述 Description
	86011CG00-01T-G	Desktop SPS,500W PFC,HUNTKEY,HK601-11PP
	860117D00-289-G	Desktop SPS,650W Non PFC,LITEON,PS-8651-
	86011BJ00-01T-G	PC SPS,750W,HUNTKEY,HK850-11PP
	86020E400-66A-G	Server SPS,850W 1U,GREATWALL,GW-ATX850BL
	86020GK00-66A-G	SPS,1000W 1U,GREATWALL,GW-EPS1000DA(90+)
	351061S00-JTU-G	GPIO cable with bracket,350mm
	35106BR00-38L-G	1 to 2 USB Cable with bracket,300mm+/-15mm
	351061R00-JTU-G	LPT cable with bracket, 450mm
	35107VA00-38L-G	PS2 KBMS /1*6Pin,400mm,+/-10mm,VSO,SR4H05621
	351091T00-0R3-G	Com*1 Bracket Cable,400mm,+/-10mm
	351091S00-0R3-G	Com*2 Bracket Cable,400mm,+/-10mm
