Features
Intel® Coffee lake处理器
17寸 LED背光显示屏，前面框支持IP65防护等级
铝合金的机身使其轻薄、坚固稳定、散热效果更好
工业等级五线全平面电阻触摸屏
支持WiFi/BT/4G/5G(可选）
支持双千兆网口
宽压12~36V DC-IN, 可锁附凤凰端子接口
支持Reset 硬重启
产品外壳接地保护
内置1 x 2.5寸HDD/SSD可扩充支架
支持标准VESA及嵌入式安装方式
支持PCIe X16/PCIe X8/PCIe X4/PCIe X1扩展插槽
Industrial computer manufacturer
-
TEL：0512-86183888#6819
PRODUCTS
NEWS
- PRODUCTS
- NEWS
Specifications
System
| Processor | Intel® 8th/9th Gen Core ™ i7/i5/i3/Pentium®/Celeron® Processor TDP 35W CPU 搭配3500RPM FAN/TDP 65W CPU 搭配5500RPM FAN |
| Memory | 2 x DDR4 2400/2666 MHz SO-DIMM, up to 32 GB |
| Storage | 1 x 2.5" SATA3.0 HDD/SSD 1 x M.2 2280 SSD slot |
| Graphics | Intel® UHD Graphics 610/630 |
| OS | Win10/11,Linux |
| Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min |
Display
| Size | 17 inches |
| Resolution | 1280(H) x 1024(V) |
| Ratio | 4:3 |
| Brightness | 250 nits |
| Viewing Angle | CR ≥ 10,170° (H)/160° (V) ;CR ≥ 5,178° (H)/170° (V) |
| Contrast Ratio | 1000 |
| Backlight | LED Backlight |
| Backlight Lifetime | 50000Hrs |
Touchscreen

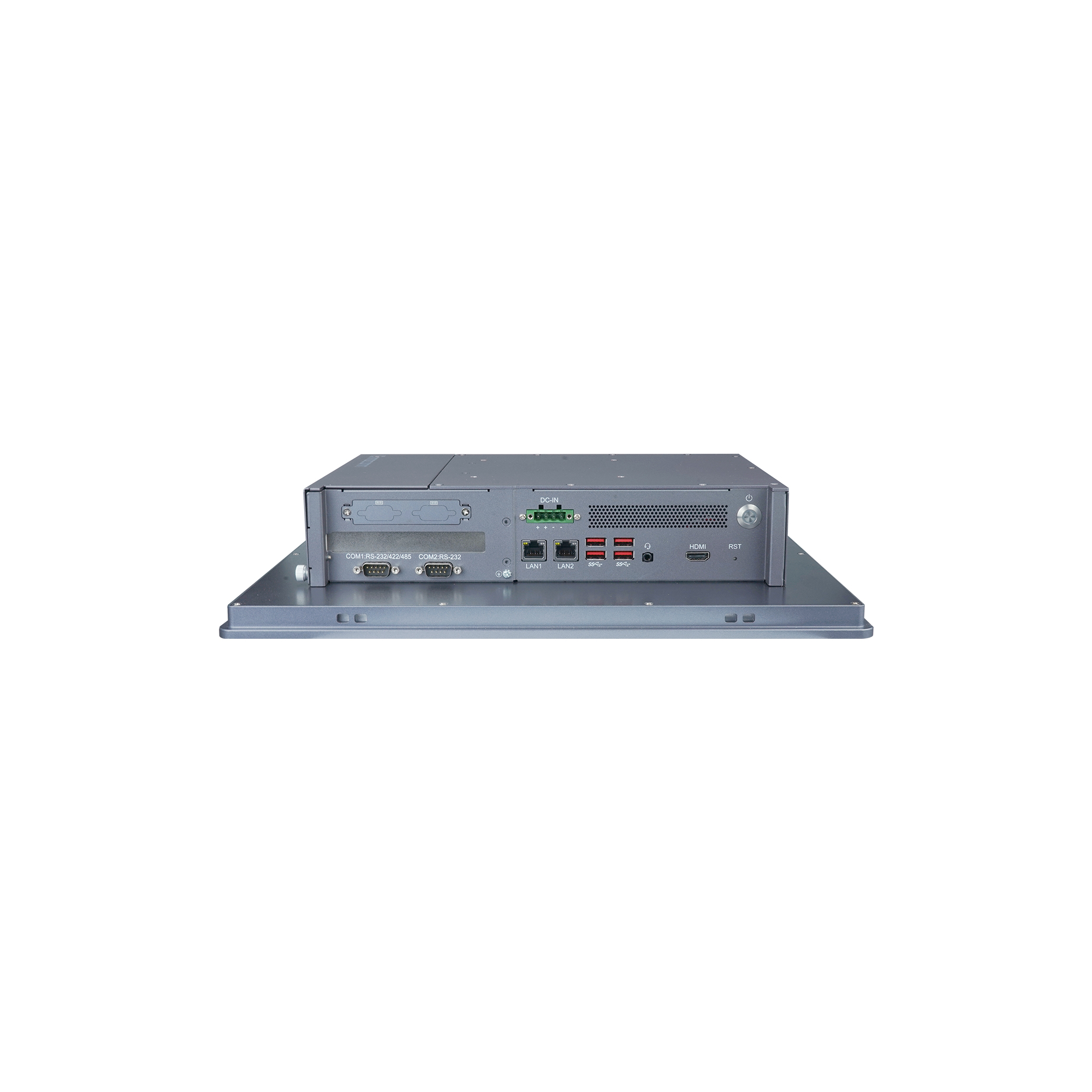

External I/O
| COM | 1 x RS232/RS422/RS485(COM1) 1 x RS232 |
| O-Door | NA(标配）/2COM/2USB optional |
| USB | 4 x USB 3.0 |
| Ethernet | 1 x RJ45 Intel® I211AT (10/100/1000 Mbps) 1 x RJ45 Intel® I219-LM GbE (10/100/1000 Mbps) |
| Video | 1 x HDMI (up to 4096 x 2304@24hz) |
| Audio | 1 x Audio(Line-out&Mic-in 2 in 1), Realtek® ALC888S-VD2-GR HD Audio codec 2 x Speaker 4Ω3W |
| Reset | 1 x HW reset |
| Power bottom | 1 x Power bottom W/LED ( System 上电 -LED OFF/Power ON-LED ON/Power OFF-LED OFF) |
| Power Input | 1 x Power Connector (4P Phoenix) |
Internal I/O
| Expansion | 1 x PCIe X16 expansion Slot, PCIe Card dimension not larger than174.55mm(W)x111.15mm(H)x30.71mm(D) 1 x 9Pin (SATA LED/Power LED/OS reset) 1 x M.2 Key-B 3052slot (4G/5G supported) 1 x M.2 Key-E 2230 slot (WiFi +BT supported) 1 x SIM socket 2 x USB3.0 2 x USB2.0 2 x RS232 |
Mechanical
| Front Panel | 铝 Aluminum |
| Heat-Sink | 铝 Aluminum |
| Rear Cover | 铁 SECC |
| Mounting | Panel Mount, Wall and VESA-mount (100 x 100mm) |
| Dimension | 392.4(W) x 327.7(H) x 81.6(D)mm |
| Cut Out | 382.2 x 317.5mm |
| Weight | 5.4kg |
Environmental
| Operation Temp. | -10℃ ~ 50℃ with 0.7m/s air flow (with 35W CPU and industrial SSD) 0℃ ~ 40℃ with 0.7 m/s air flow (HDD) |
| Storage Temp. | -40℃ ~ 70℃ |
| Relative Humidity | 5% ~ 95%, 非凝结状态 Non-condensing |
| Random Vibration | 5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation |
| Sine Vibration | 5~500Hz, 2G Non-operati |
| Shock | 10g 11ms operation, 30g 11ms Non-operation |
| Ingress Protection | Front panel IP66 |
Power
| Power Input | 12~36V DC |
Certification
| Safety Certification | CCC/CE/FCC |
电磁兼容/安规 EMC&Safety
Order List
| 标配 Standard | 型号 Model | 描述 Description |
| 49020L100-JV0- G( 搭配35W CPU) ( 风扇二选一) | Fan,3500RPM,77mm*75mm*15.4mm,3W,12V, | |
| 460207W00-JV0- G( 搭配65W CPU) ( 风扇二选一) | Fan,5500RPM,77mm*75mm*15.4mm,3W,12V, | |
| 34046YV00-67Y-G | x 4P DC in Phoenix conn (5.00), female | |
| 1A03DRW00-88A-G | panel hook（4pcs in1 package） | |
| 2G151DS00-HUH-G | 57*12.5*1.5 thermal pad for Memory/SSD ( x 2pcs) | |
| 2G151HY00-KDH-G | 30*30*1.5 thermal pad for CPU | |
| 2A583SB00-G7D-G | M3X4 SCREW for HDD( x4pcs) | |
| 2A5868R00-G7D-G | M4*8 SCREW for VESA( x4pcs) |
| 选配 Optional | 型号 Model | 描述 Description |
| CTO-150W-LT00 | Lite-on150W 适配器+1.5 米powercord | |
| 351086700-JTU-G | COM Cable | |
| CTO-2USB-ODOOR | Odoor W/ 2 USB |
