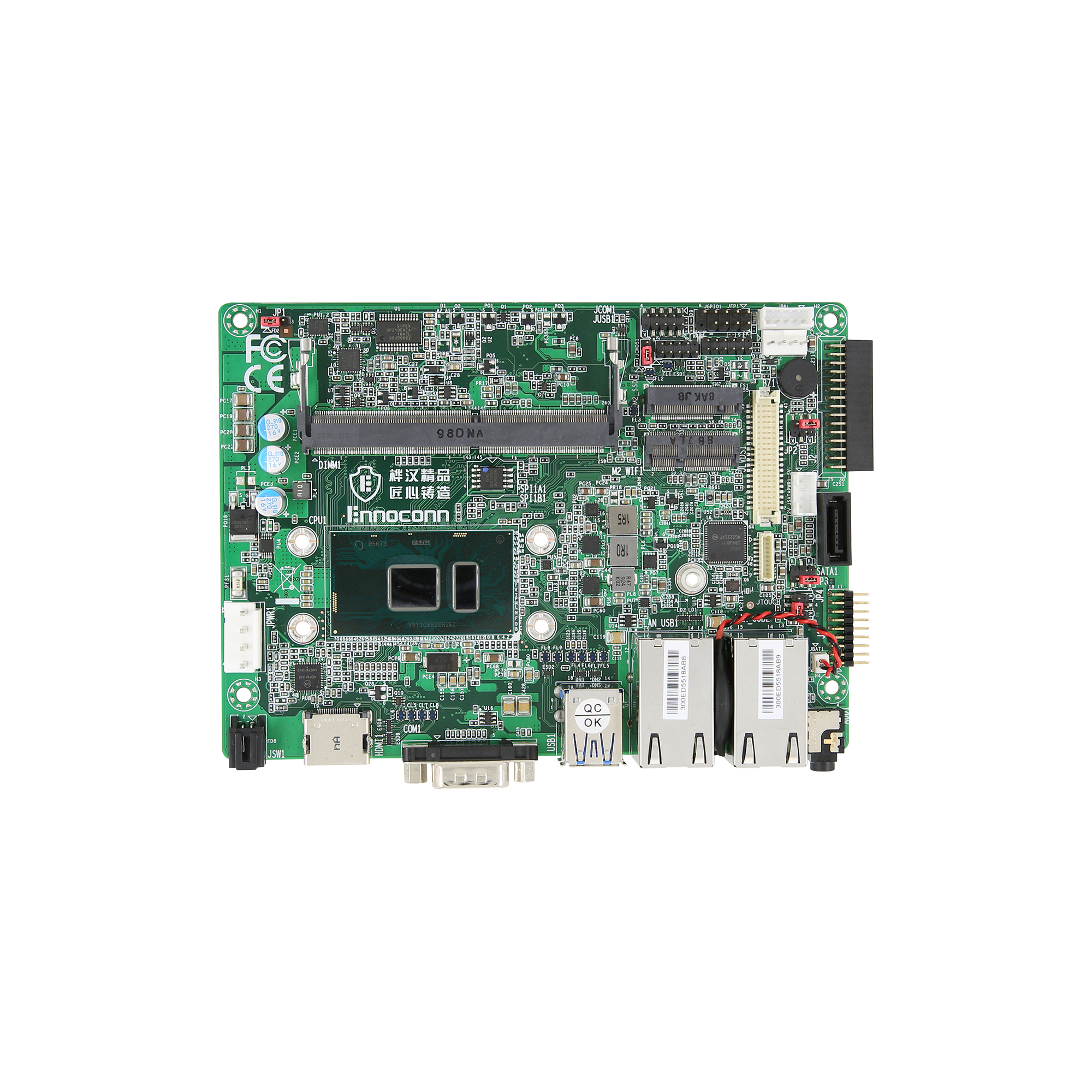

CEB-6X03-W100

Embedded Board CEB Series >3.5" & 4"

Intel®Sky Lake i3-6100U/i5-6200U/i7-6500U Processor, 2 x LAN, HDMI/LVDS, 2 x COM, 6 x USB, Mini-PCIe, M.2, 3.5"MB

Get Price

Download

Home

>

Embedded Board CEB Series

>

3.5" & 4"

Features

Intel^® 第六代Core™ i3-6100U Processor (2.3 GHz)
Intel^® 第六代Core™ i5-6200U Processor (2.3 GHz)
Intel^® 第六代Core™ i7-6500U Processor (2.5 GHz)
支持SO-DIMM DDR4，最大支持16GB
支持宽压输入9V~36V
支持宽温-20℃~ 60℃
支持Watch dog功能
支持SIM卡
支持触摸功能 (PenMount IC)
支持IO扩展和Riser卡扩展功能

Specifications

Processor	Intel^® 6th Core ™ i3-6100U Processor (2.3 GHz) Intel^® 6th Core ™ i5-6200U Processor (2.3 GHz) Intel^® 6th Core ™ i7-6500U Processor (2.5 GHz)
Memory	Single Channel, 1 x SO-DIMM Slot, DDR4 1866/2133/2400MHz, up to 16GB
Storage	1 x SATA3.0, 1 x M.2 2242 (SATA/PCIe X1 supported)
Display	Intel^® HD Graphics 520
Ethernet	1 x RJ45 Intel^® I211AT (10/100/1000 Mbps) 1 x RJ45 Intel^® I219-LM GbE (10/100/1000 Mbps)
Audio	Realtek^® ALC269Q HD Audio Codec
BIOS	AMI UEFI BIOS
Rear I/O	1 x HDMI: max resolution up to 4096 x 2304@24Hz 2 x USB2.0, 2 xUSB3.0 (USB SR Pro supported) 2 x RJ45 1 x RS232/422/485 1 x Remote 1 x Line out&Mic in (2 in 1)
Internal I/O	1 x LVDS: max resolution up to 1920 x 1200 @60Hz 2 x USB2.0 1 x 8 bit GPIO 1 x RS232 1 x Touch 1 x F_Panel (Power LED, HDD LED, Power button, reset button) 1 x DC IN
Expansion	1 x M.2 2230 (WiFi/PCIe/USB2.0 signal supported) 1 x M.2 2242 (SATA/PCIe X1 signal supported) 1 x Mini-PCIe ( WiFi/3G/4G/mSATA supported) 1 x SIM
Environment	操作温度 Operation Temp.: -20℃ ~ 60℃ 存储温度 Storage Temp.: -40℃ ~ 85℃ 操作湿度 Operation Humidity: 5% ~ 95% , 非凝结状态 Non-condensing 存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing
Power Input	宽压9-36V DC-IN
Dimensions	3.5" (146 x 105mm)
OS	Windows 7/8/10, Linux
Watchdog Timer	System Reset, Programmable via software from 1 to 255 seconds

Configuration

型号 Model	处理器 CPU
CEB-6103-W100	Intel^® 6th Core ™ i3-6100U Processor (2.3 GHz)

Order List

标配 Standard	型号 Model	描述 Description
标配 Standard	350773000-0R3-G	Power Cable,120mm+/-10mm,18AWG,4pin+2pin

选配 Optional	型号 Model	描述 Description
	CTO-6203-cooler-N	CPU cooler for 1CB2
	351089700-0R3-G	COM2,COM cable,150mmm+/-10mm
	35105R200-JTU-G	USB*2 type A(F) black cable 500px
	35074RQ00-JTU-G	SATA Power data cable,150mm+/-10mm
	100113000-600-GT20	I/O expansion card, 3 x COM
