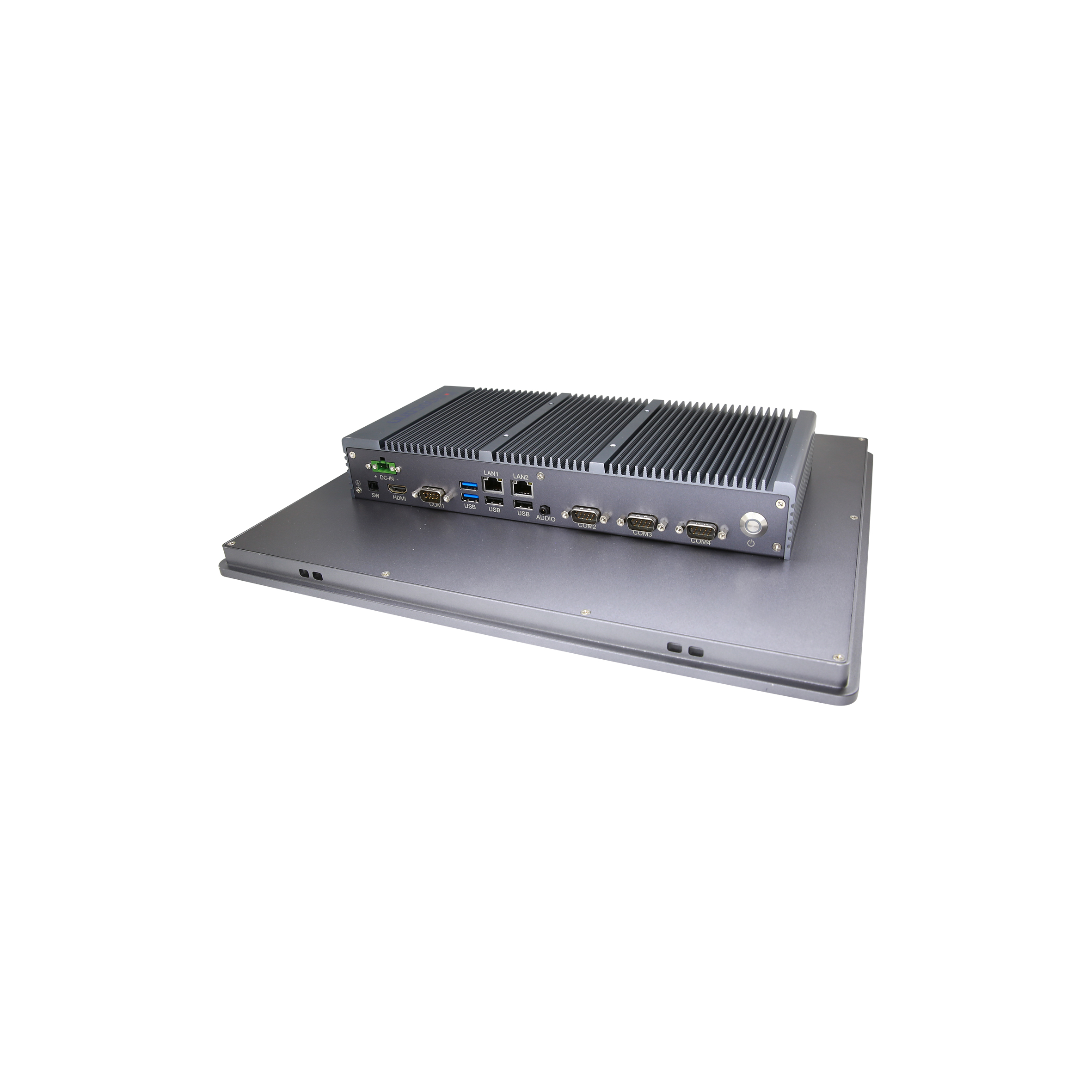

Onboard Intel® Skylake Core™ i3-6100U/i5-6200U CPU, base frequency 2.3GHz
17 inches highlight LED panel，front panel can support IP65
Aluminum alloy fuselage makes it light, firm and stable, and has better heat dissipation effect
Industrial-grade true-flat 5-wire resistive touch screen
Support Mini-PCIe/M.2 extension of multiple modules
Support dual GbE LAN
Wide voltage 9~36V DC-IN, lockable phoenix connector
Support remote ON-OFF
Grounding protection for product shell
Support 1 x 2.5 inch HDD/SSD expansion
Support standard VESA and panel mount
Industrial computer manufacturer
-
TEL：0512-86183888#6819
PRODUCTS
NEWS
- PRODUCTS
- NEWS
System
| Processor | Intel® 6th Gen. Core™ i3-6100U processor (2.30GHz) Intel® Core™ i5-6200U Processor (2.3GHz, up to 2.8GHz) |
| Memory | 1 x DDR4 1866/2133MHz SO-DIMM, up to 16 GB |
| Storage | 1 x 2.5" Drive Bay for SATA3.0 HDD/SSD 1 x M.2 2242 SSD slot, 1 x mSATA |
| Graphics | Intel® HD Graphics 520 |
| OS | Windows 7/8.1/10, Linux |
| Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min |
Display
| Size | 17 inches |
| Resolution | 1280(H) x 1024(V) |
| Ratio | 4:3 |
| Brightness | 250 nits |
| Viewing Angle | CR≥10,170°(H)/160°(V) ;CR≥5,178°(H)/170°(V) |
| Contrast Ratio | 1000 |
| Backlight | LED Backlight |
| Backlight Lifetime | 50000Hrs |
Touchscreen
| Touch Type | 5-Wire Resistive Touch |
| Touch | 35,000,000 times |
External I/O
| COM | 2 x RS232/RS422/RS485(COM1~2) 2 x RS232(COM3 & COM4) |
| USB | 2 x USB 2.0, 2 x USB 3.0 |
| Ethernet | 1 x RJ45 Intel® I211AT (10/100/1000 Mbps) 1 x RJ45 Intel® I219-LM GbE (10/100/1000 Mbps) |
| Video | 1 x HDMI (up to 4096 x 2160) |
| Audio | 1 x Audio(Line-out&Mic-in 2 in 1), Realtek® ALC269 HD Audio codec |
| Remote ON-OFF | 1 x Remote ON-OFF |
| Power Input | 1 x Power Connector (2P Phoenix) |
Internal I/O
| Expansion | 1 x Mini-PCIe slot (PCIe/SATA signal supported) 1 x M.2 2242 slot (PCIe/SATA signal supported) 1 x M.2 2230 slot (WiFi supported) 1 x SIM socket |
Mechanical
| Front Panel | Aluminum |
| Heat-Sink | Aluminum |
| Rear Cover | SECC |
| Mounting | Panel Mount, Wall and VESA-mount (75 x 75mm) |
| Dimension | 392.4(W) x 327.7(H) x 66(D)mm |
| Cut Out | 382.2 x 317.5mm |
| Weight | 5.2kg |
Environmental
| Operation Temp. | -10℃ ~ 50℃ (SSD), 0℃ ~ 40℃ (HDD) |
| Storage Temp. | -40℃ ~ 70℃ |
| Relative Humidity | 5% ~ 95%, Non-condensing |
| Random Vibration | 5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation |
| Sine Vibration | 5~500Hz, 2G Non-operation |
| Shock | 10g 11ms operation, 30g 11ms Non-operation |
| Ingress Protection | Front panel IP65 |
Power
| Power Input | 9~36V DC |
Certification
| Safety Certification | CCC/CE/FCC |
| 型号 Model | 处理器 CPU |
| CEP-17RS-610A | Intel® Core™ i3-6100U Processor (2.3GHz) |
| CEP-17RS-620A | Intel® Core™ i5-6200U Processor (2.3GHz, up to 2.8GHz) |
| 标配 Standard | 型号 Model | 描述 Description |
| 34046QH00-GLA-G | 1x2P DC in Phoenix conn(5.00), female | |
| 35106A500-0R3-G | 1x2P Remote conn(2.00), 300mm | |
| 35074RQ00-JTU-G | 1xSATA, 7+4P, 150mm, w/ lock, 180°/ 90° | |
| 1A03DV400-88A-G | panel hook(4pcs in 1 package) |
| 选配 Optional | 型号 Model | 描述 Description |
| CTO-060W-FSP0 | CEA-060W-FSP0, FSP 60W adapter, 3750px power cord | |
| CTO-060W-LT00 | CEA-060W-LT00, LITEON 60W adapter, 3750px power cord |
