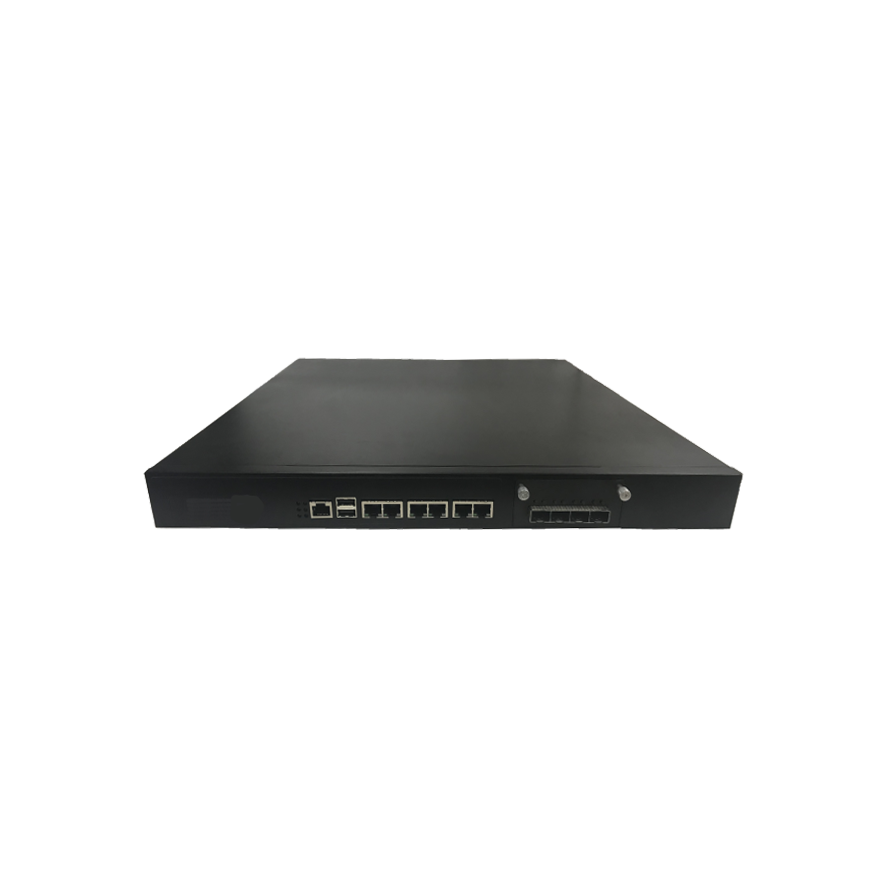

Intel® Comet Lake S family processors, up to 95W TDP
PCH H420E, W480E support
2 x DDR4 2400/2666/2933MHz ECC/non ECC UDIMMs, up to 64GB
6 x 2.5GbE copper onboard,can expand 2 more extra ports for 2.5GbE copper
Daughter board for 4x copper or 4x SFP expansion
2 xsegments bypass
1 x RJ-45 and USB type C System Console Port
2242 M.2 Socket (W480 only, SATA3.0 or PCIe3.0x4. H420E does not support M.2)
CEA module support
| 处理器 Processor | Intel® Comet Lake-S platform Core i series Processor LGA1200 up to 10 Cores and 95W TDP |
| 芯片组 Chipset | Intel H420E / Intel W480E |
| 内存 Memory | 2 x DDR4 2400/2666/2933MHz UDIMMs, up to 64 GB (Freq/ECC depends on PCH/CPU SKU) |
| 存储 Storage | N/A / 1x M.2 B+M key 2242 (SATA3.0 or PCIe gen3 x4) 4x SATA3.0 (1 with SATADOM Power) |
| 操作系统 OS | Linux Kernel |
| 扩展 extention | iSAM support when remove EZIO 1x PCIe Gen3 x 8/x4x4 for CEA / 1x PCIe Gen3 x 8/x4x4 for CEA |
| 网络 Ethernet | Default:6x 2.5GbE RJ45 (with 1226-LM) / Default:8x2.5GbERJ45(withI226-LM) Cost effective version:6x 2.5GbE RJ45 (with I1226V) / Cost effective version:8x 2.5GbE RJ45 (with I226-V) *1226-V Use Conditions:PC/Client/Tablet / *1226-VUseConditions:PC/Client/Tablet |
| 电源 Power | 150W ATX Power Supply |
| 显示 Video | 1 x HDMI header |
| 串口 COM | 1 x RJ-45 ; 1 x USB type C System Console Port |
| USB | Front: 2 x USB 3.0 Ports, Rear: 1x USB 3.0 header |
| 指示灯 LED | Power / HDD / BP |
| LCD PaneI | 1 x EZIO-383 |
| TPM | 1 x Header |
| 尺寸Dimension | 438X344.4X44(mm) |
| 重量 Weight | 4.74 kg |
| 操作温度 OperatingTemp. | Temperature: 0 - 40° C (32 - 104° F) Humidity: 10 - 90% RH |
| 存储温度Storage temp | Temperature: -10 - 70° C (14 - 158° F) Humidity: 5 - 95% RH @ 55° C |
| 安规认证 Safety Certification | CE/FCC |
| Bypass | 2x Segment Bypass 4.0 |
| 型号 Model | Chiptset | M.2 | RJ45 2.5GbE | SATA3.0 | USB3.0 |
| CEFS-NS50-H42E | Intel H420E | 0 | 6 | 4 | 2 |
| CEFS-NS50-W48E | Intel W480E | 1 | 8 | 4 | 2 |
| 选配 Optional | 型号 Model | 描述 Description |
| CEA-2SFP-71B2-X080 | Intel X710-BM2 网卡芯片/ 2 个SFP 光口/ 万兆网口/PCIe3.0 界面/PCIex8/2 x 10G SFP+/0 | |
| CEA-4SFP-71B1-X080 | Intel XL710-BM1 网卡芯片/ 4 个万兆光口/ PCIe3.0 界面/PCIex8 /4 x 10G SFP+ /0 | |
| CEA-2QSFP-71B2-X080 | Intel XL710-BM2 网卡芯片/2 个40G 光口/PCIe3.0 界面/PCIex8 /2x 40GbE QSFP28 /0 | |
| CEA-8RJ45-35M4-X081 | Intel i350-AM4 网卡芯片/8 个千兆电口/PCIe2.0 界面/4 组Bypass/ PCIex8 + SW/ 8 x 1G RJ45 /4 |
