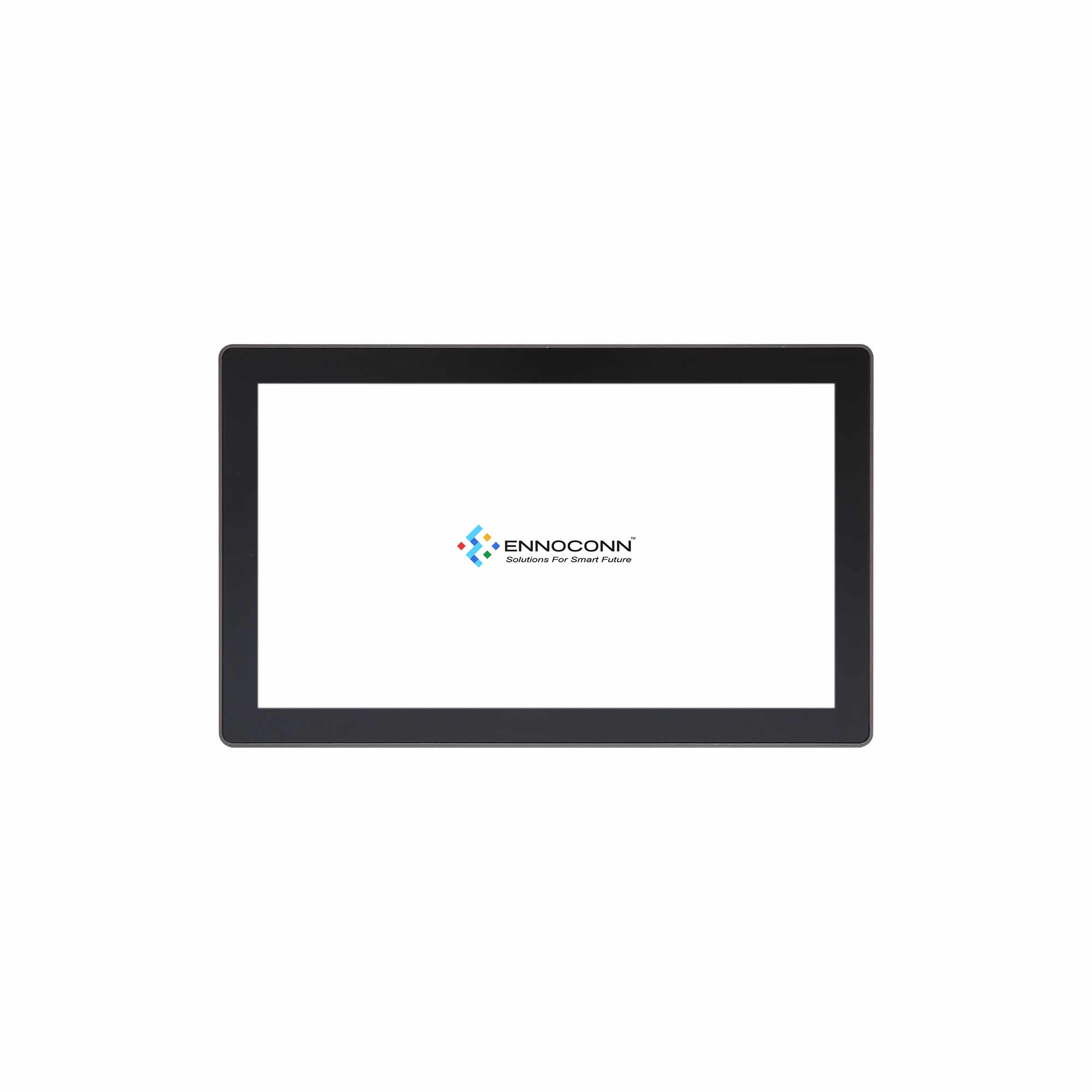

板载11代 Intel® Core™ Tiger lake U i7/i5/i3 处理器
搭载15.6英寸1000 nits FHD LCD面板，前面框支持IP66防护等级
铝合金的机身使其轻薄、坚固稳定、散热效果更好
工业等级AG Coating 全平面宽温户外五线电阻屏
内置Mini-PCIe/M.2 2230/M.2 2242 支持多种模块扩展
支持三个千兆网口
宽压10-36V DC-IN，可锁附凤凰端子接口
支持远程开关
产品外壳接地保护
内置2个3W 4Ω Speaker
内置1 x 2.5寸HDD/SSD可扩充支架
支持标准VESA及嵌入式安装方式
| 处理器 Processor | i3-1115G4 3.0G (2 Cores, 6M Cache, up to 4.1GHz) i5-1135G7 2.4G (4 Cores, 8M Cache, up to 4.2GHz) i7-1165G7 2.8G (4 Cores, 12M Cache, up to 4.7GHz) i5-1145G7E 1.5G (4 Cores, 8M Cache, up to 4.1GHz) |
| 内存 Memory | 1 x DDR4 3200 MHz SO-DIMM, up to 32 GB |
| 存储 Storage | 1 x 2.5" SATA3.0 HDD/SSD 1 x M.2 2242 SSD slot |
| 图形 Graphics | Intel® UHD Graphics for 11th Gen, Intel® Processors & Intel® Iris® Xe Graphics |
| 操作系统 OS | Windows 10, Linux |
| 看门狗定时器 Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min |
| 尺寸 Size | 15.6 inches |
| 分辨率 Resolution | 1920(H) x1080(V) |
| 屏幕宽高比 Ratio | 16:9 |
| 亮度 Brightness | 1000 nits |
| 可视角 Viewing Angle | 85/85/85/85 (Typ.)(CR ≥ 10) |
| 对比度 Contrast Ratio | 1000:1 |
| 背光 Backlight | LED Backlight |
| 背光寿命 Backlight Lifetime | 50000Hrs |
| 触摸屏 Touch Type | 全平面五线电阻屏 5-Wire Resistive 户外定制 Touch -30~70℃ AG coating |
| 触击 Touch | 35,000,000 times |
| 串口 COM | 2 x RS232/422/485 (COM1/2) with DB9 2 x RS232/RS485, 2 x RS232 with 12PIN Phoenix connector |
| USB | 4 x USB 3.1 |
| 网口 Ethernet | 1 x RJ45 Intel® I226V Gbe (10/100/1000 Mbps) 2 x RJ45 Intel® I210-AT Gbe (10/100/1000 Mbps) |
| 显示 Video | 1 x HDMI (up to 4096 x 2304@60Hz) |
| 音频 Audio | 1 x Audio(Line-out&Mic-in 2 in 1), ALC888S |
| 重置Reset | 1 x OS reset |
| 开关按键Power bottom | 1 x Power button W/LED( System 上电 -LED OFF/Power ONLED ON/Power OFF-LED OFF) |
| 远程开关 Remote ON-OFF | 1 x Remote ON-OFF |
| 电源输入 Power Input | 1 x Power Connector (2P Phoenix) |
| 扩展接口 Expansion | 1 x Mini-PCIe (PCIe/USB2.0 signal supported) 1 x M.2 Key-E 2230 slot (WiFi +BT supported) 1 x SIM socket |
| 前框 Front Panel | 铝 Aluminum |
| 铝挤 Heat-Sink | 铝 Aluminum |
| 底板 Rear Cover | 铁 SECC |
| 安装方式 Mounting | Panel Mount, Wall and VESA-mount (100 x 100mm) |
| 尺寸 Dimension | 395(W) x 245.5(H) x 59(D)mm |
| 建议开孔尺寸Cut Out | 387 x 237.5mm |
| 重量 Weight | 4.55Kg |
| 操作温度 Operation Temp. | -10℃ ~ 50℃ (SSD), 0℃ ~ 40℃ (HDD) |
| 存储温度 Storage Temp. | -40℃ ~ 70℃ |
| 湿度 Relative Humidity | 5% ~ 95%, 非凝结状态 Non-condensing |
| 随机振动 Random Vibration | 5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation |
| 正弦振动 Sine Vibration | 5~500Hz, 2G Non-operation |
| 机械冲击 Shock | 10g 11ms operation, 30g 11ms Non-operation |
| 前面板防护 Ingress Protection | Front panel IP66 |
| 电源输入 Power Input | 10-36V DC |
| 安规认证 Safety Certification | FCC/CE/CCC |
| 型号 Model | 处理器 CPU |
| CESP-15RW-111L | Intel® Core ™ i3-1115G4 3.0G (6M Cache,up to 4.1GHz) |
| CESP-15RW-113L | Intel® Core ™ i5-1135G7 2.4G (8M Cache,up to 4.2GHz) |
| CESP-15RW-116L | Intel® Core ™ i7-1165G7 2.8G (12M Cache,up to 4.7GHz) |
| 标配 Standard | 型号 Model | 描述 Description |
| 34046QH00-GLA-G | 1x2P DC in Phoenix conn（5.00）, female | |
| 2G151VA00-3JM-G | 1 x M2-2242 thermal-pad | |
| 2G151VC00-3JM-G | 1 x Memory thermal-pad | |
| 2A583SB00-G7D-G | 4 x M3*4 SCREW for HDD | |
| 2A5868R00-G7D-G | 4 x M4*8 SCREW for VESA | |
| 2T71CD500-JWQ-G | 2 x panel hook（4pcs in 1 package） | |
| 34046QJ00-600-G | 1 x Conn,3.5mm,PA,DIP-2,FIT,TEPE123-11G00-DF |
| 选配 Optional | 型号 Model | 描述 Description |
| CTO-090W-HK00 | Adapter, 100V-240V, 12V, 90W, 2PIN凤凰端子头, 1.5M, HK | |
| CTO-090W-LT00 | Adapter,100V-240V, 12V, 90W, 2PIN凤凰端子头, 1.5M, LT |
