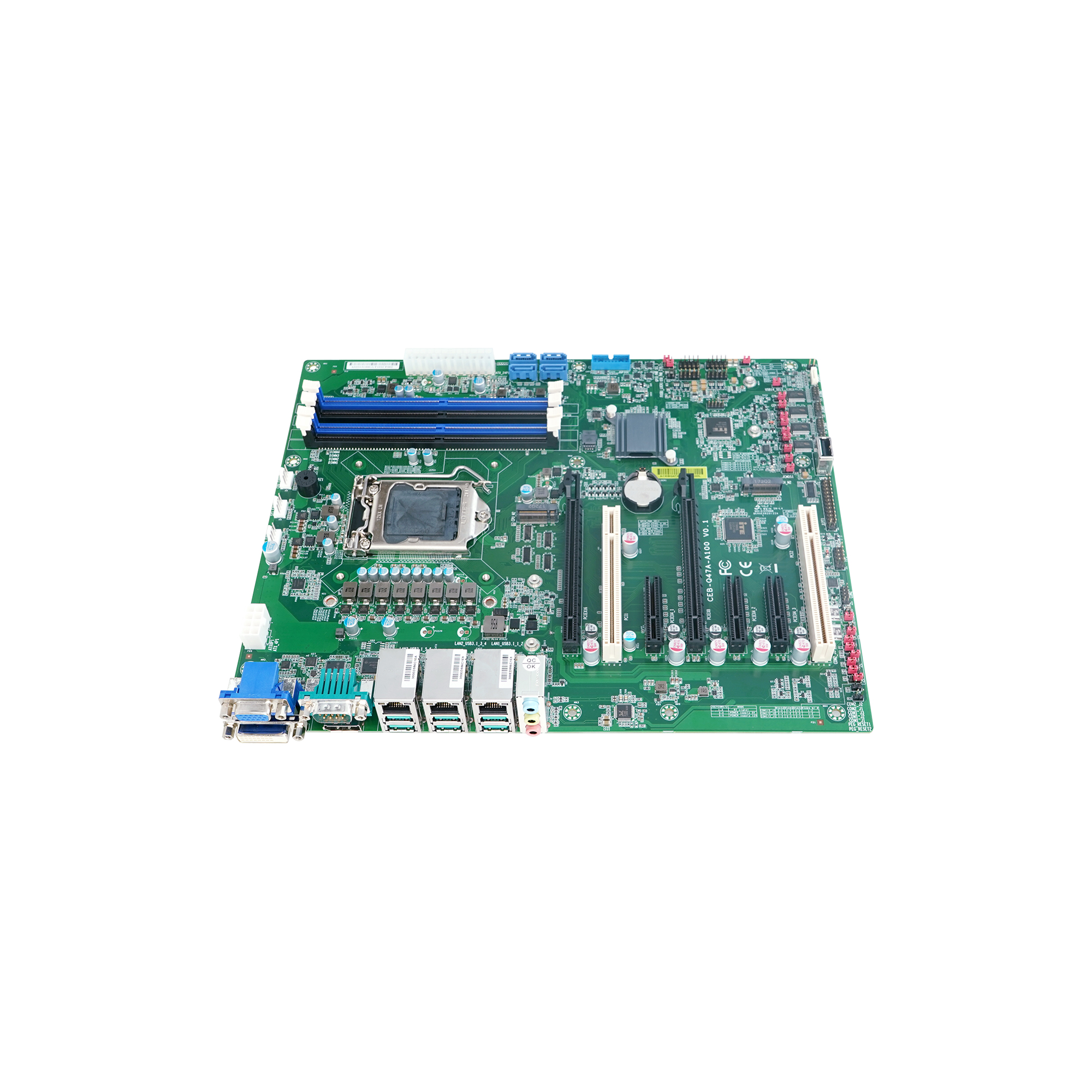

CEB-Q47A-A100

嵌入式工业主板CEB系列>ATX

Intel Q470E Chipset, 3 x LAN, VGA/DVI-D/DP, 6 x COM, 14 x USB, 5 x PCIe, 2 x PCI, 2 x M.2, ATX MB.

产品特性

Intel®10/11代酷睿 i9/i7/i5/i3/奔腾®/赛扬®处理器, 功耗最高支援到125W, 支持intel vPro
双通道4插槽 DDR4 2400/2666/2933MHz, 高达128GB
支持VGA, DVI-D, DP三屏显示
支持三Intel GbEs, USB3.2 Gen1/2, 16位GPIO
支持4个SATA3.0, RAID0/1/5/10
支持2个RS232/422/485和2个RS232/485和2个RS232串联端口, 5V/12V电压输出
海岸线USB端口支援USB SR Pro技术
2 x PCIe3.0 X16 (1 x 16 or 2 x 8link )和3个PCIe3.0 X4 (X4 link), 2个PCI, 1个M.2(SATA3.0/PCIe 3.0 x 4 ) 2242/2280, 1个M.2(PCIe3.0 x 4 NVMe)2242/2280 仅11th CPU支持

产品规格

处理器 Processor Intel® 10th/11th Gen Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor, LGA1200, TDP up to 125W
芯片组 Chipset Q470E
内存 Memory 4 x DDR4 2400/2666/2933 MHz U-DIMM Slot, up to 128GB
存储 Storage 4 x SATA 3.0, 1 x M.2 (SATA3.0/PCIe 3.0 x 4) 2242/2280,1 x M.2( PCIe4.0 x 4 NVMe ) 2242/2280 only 11th CPU supported
显示 Display Intel® UHD Graphics 630
网口 Ethernet 1 x Intel® i219-LM GbE, 2 x Intel® i211-AT (10/100/1000 Mbps)
音频 Audio Realtek® ALC888S/ALC897 HD Audio codec, supports 5.1-channel
BIOS AMI UEFI BIOS
外部接口 Rear I/O 1 x DVI-D: max resolution up to 1920 x 1200 @ 60Hz 1 x VGA: max resolution up to 1920 x 1200 @ 60Hz 1 x DP: max resolution up to 4096 x 2160 @ 60Hz 6 x USB3.2 Gen2 3 x RJ45 1 x RS232/422/485 (with auto flow control) 1 x Line-out, Line-in, Mic-in
内部接口 Internal I/O 1 x RS232/422/485 (with auto flow control) 2 x RS232/485 2 x RS232 8 x USB2.0 (1 x Type-A) 1 x 16 bit GPIO 4 x SATA3.0 1 x PS/2 (for Keyboard and Mouse) 1 x CPU_FAN 2 x SYS_FAN 1 x LPT 1 x FP(power button,power led,reset,HDD led)
扩展接口 Expansion 2 x PCIe3.0 X16(1 x 16 or 2 x 8link) 3 x PCIe3.0 X4(X4 link) 2 x PCI 1 x M.2 (SATA3.0/PCIe3.0 x 4 supported) 1 x M.2( PCIe4.0 x 4 NVMe ) 2242/2280 only 11th CPU supported
信赖平台模块 TPM Nuvoton TPM2.0 (optional, need MOQ)
环境 Environment 操作温度Operation temp: 0℃~60℃ 存储温度Storage temp: -40℃~85℃ 操作湿度Operation hum: 5%~90%, 非凝结 Non-condensing 存储湿度Storage hum: 5%~95%, 非凝结 Non-condensing
电源输入 Power Input ATX
尺寸 Dimensions 304.8 x 244 mm (12" x 9.6")
操作系统 OS Windows 10, Linux
看门狗 Watchdog Timer System Reset, Programmable via software from 1 to 255 seconds

订购清单

标配 Standard 型号 Model 描述 Description
35091AW00-JTU-G SATA Signal Cable Assembly,400mm+/-20mm
2T71B4Q00-G9F-G Q47A IO shielding
选配 Optional 型号 Model 描述 Description
35107V900-JTU-G LPT cable with bracket, 450mm
351061S00-JTU-G GPIO cable with bracket,350mm
35106BR00-38L-G 1 to 2 USB Cable with bracket,300mm+/-15mm
35106WJ00-38L-G COM2,COM Cable witht Bracket,400+/-10mm
480301K00-JV0-G CPU Cooler, support 65W, LGA115X Series
35106WK00-38L-G COM3~4/COM5~6,COM Cable with Bracket,400+/-10mm
35107VA00-38L-G PS2 Cable with Bracket,400mm+/-10mm
