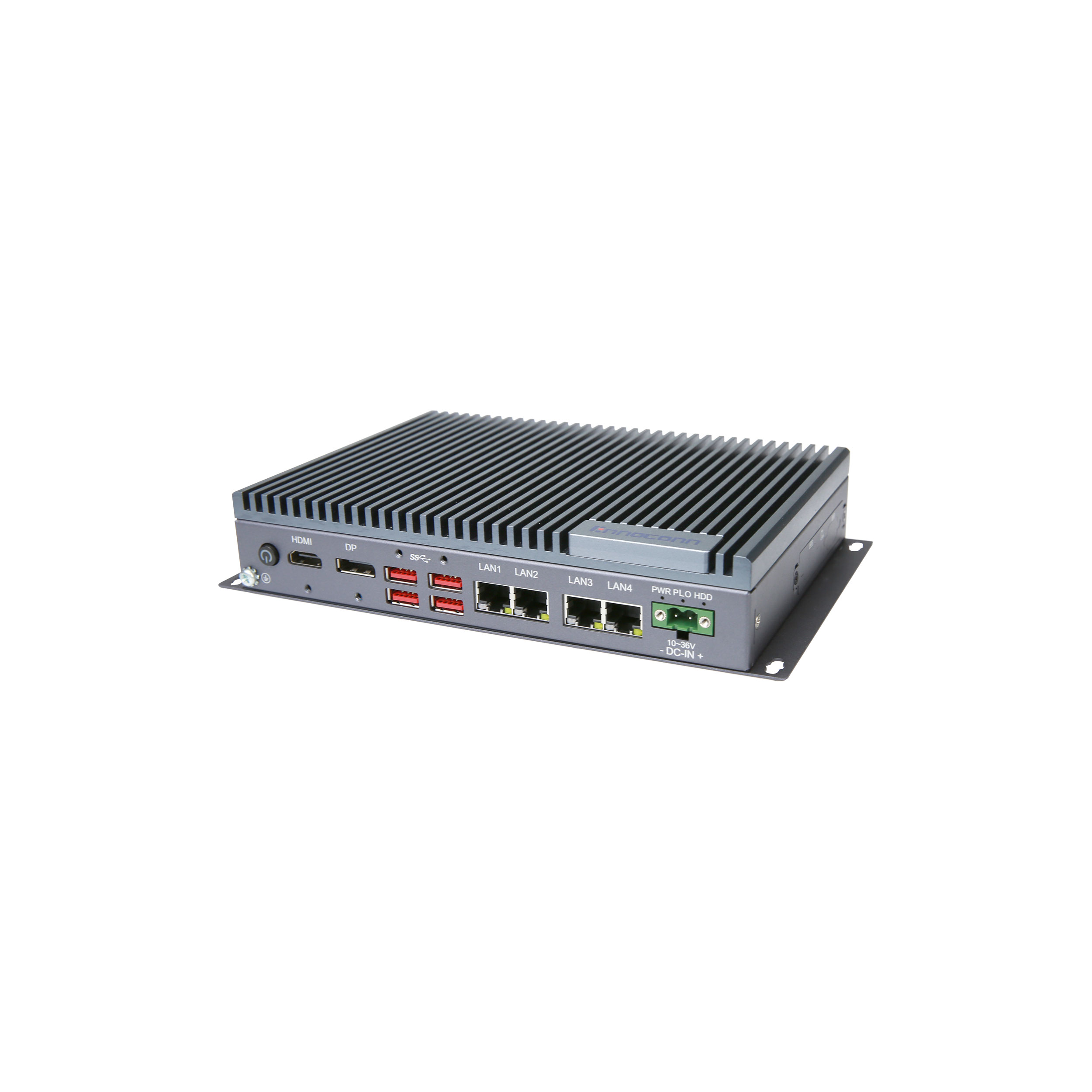

板载Intel® 8th Gen. U Processors i3-8145UE/i5-8365UE/i7-8665UE CPU，主频最大可以达到2.2GHz
支持单通道DDR4 2133/2400 MHz SO-DIMM内存插槽，内存容量最大可达32GB
支持4个千兆网口
支持DP/HDMI/EDP 扩展同步/异步显示
内置2 x Mini-PCIe,1 x M.2 2242,1 x M.2 2230(CNVI),1 x M.2 3042/3052 多种模块扩展
10~36V宽压设计，可锁附DC-IN接口
| 处理器 Processor | Intel® 8th Gen. U Dual Core Processors i3-8145UE (2.2GHz up to 3.9GHz) Intel® 8th Gen. U Quad Core Processors i5-8365UE (1.6GHz up to 4.1GHz) Intel® 8th Gen. U Quad Core Processors i7-8665UE (1.7 GHz up to 4.4GHz) |
| 内存 Memory | 1 x DDR4 2133/2400MHz SO-DIMM up to 32 GB |
| 图形 Graphics | Intel@UHD Graphics620, dual display |
| 存储 Storage | 1 x mSATA Colay Mini-PCIe Connect 1 x M.2 2242 SSD 1 x 2.5" SATA 3.0 HDD/SSD BAY（与M.2 2242 组Raid 0/1） |
| 操作系统 OS | Windows 10, Linux |
| 看门狗定时器 Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min |
| 网口 Ethernet | 4 x RJ45, Intel® (2x i211 and 2x i210) GbE (10/100/1000 Mbps), support Wake On Lan |
| 显示 Video | 1 x HDMI: max resolution up to 4096x2304@24Hz 1 x DP: max resolution up to 4096x2304@60Hz |
| 音频 Audio | 1 x Audio(Line-out&Mic-in 2 in 1) Realtek® ALC888S HD Audio codec |
| 串口 COM | 4 x RS232/422/485 auto-flow 2 x RS232 (optional by 3*3 pin-head) |
| USB | 4 x USB 3.1 Gen2 2 x USB 2.0 |
| 按钮 Button | 1 x Power button (White for Power-on, Blink for Sleep mode,Off for Power-off) |
| 指示灯 LED | 1 x Power LED (Green for DC-IN) 1 x HDD LED (Green blink for Data read or write) 1 x programmable LED (Green Default monitoring CPU temperature) |
| 扩展接口 Expansion | 1 x Mini-PCIe slot(PCIE/SATA/USB2.0 Singal Support） 1 x M.2 2230 Key-E slot(only supported CNVI Wifi module ) |
| 功放 Speaker | 1 x Internal (3W 4Ω) Speaker pin-head |
| LPC | 1 x LPC |
| GPIO | 1 x Internal 8bit programmable GPIO pin-head |
| SIM 卡 | 1 x SIM Card socket for 3G/4G module |
| Extension Module A (optional) | 1 x Mini-PCIe slot (PCIe/USB2.0 Singal Supported） 1 x M.2 3042/3052 Key-B slot (5G communication module supported) 1 x EDP: max resolution up to 4096x2304@60Hz 1 x SIM socket for 5G module |
| Extension Module B (optional) | 1 x Mini-PCIe slot (PCIe/USB2.0 Singal Supported) 1 x Built-in USB3.0 1 x eDP: max resolution up to 4096x2304@60Hz |
| Extension Module C (optional) | 1 x 32bit DI/O with optocoupler isolation DI 2500vrms, DO 2500vrms, response time ≤2ms，Output Frequency≤500Hz ,Maximum driving capacity 100mA ,NPN or PNP by optional |
| 操作温度 OperatingTemp. | -20℃ ~ 60℃(SSD), 0℃ ~ 40℃(HDD) |
| 存储温度 Storage Temp. | -40℃ ~ 85℃ |
| 湿度Relative Humidity | 5% ~ 95%, 非凝结状态Non-condensing |
| 振动 Vibration | SSD: 5~500Hz, 5Grms operation (Only Use Solid state SSD) HDD: 5~500Hz, 1Grms operation |
| 机械冲击 Shock | Operation: 50G@11ms（Only Use Solid state SSD） Non-operation: 30G@11ms |
| 电源输入 Power Input | 10~36V DC, 2-pin phoenix connector |
| 外观 Housing | 铝合金 Aluminum Alloy |
| 安装方式 Mounting | Desk-Mount（桌面式） Wall-Mount（壁挂式） VESA-Mount (100 x 100mm)(optional) |
| 尺寸 Dimension | 224 x 140 x 40.2 mm (基础型) 224 x 140 x 64 mm (一层扩展) 224 x 140 x 87.8 mm (二层扩展) |
| 重量 Weight | 1.35kg |
| 安规认证 Safety Certification | CCC, CE, FCC |
| 型号 Model | 处理器 CPU |
| CES-R814-W44A | Intel® 8th Gen. U i3-8145UE Dual Core Processor (2.2GHz up to 3.9GHz) |
| CES-R836-W44A | Intel® 8th Gen. U i5-8365UE Quad Core Processor (1.6GHz up to 4.1GHz) |
| CES-R866-W44A | Intel® 8th Gen. U i7-8665UE Quad Core Processor (1.7GHz up to 4.4GHz) |
| CES-R430-W44A | Intel® Celeron 4305UE Dual Core Processor 2.00 GHz |
| 标配 Standard | 型号 Model | 描述 Description |
| 2G151DE00-HUH-G | M2-2242_THERMAL-PAD_28*26*2 | |
| 2G151DT00-HUH-G | Memory_thermal-pad_57*12.5*1.5 | |
| 34046QH00-GLA-G | 2pin DC-IN Phoenix Connector,5mm,FOXCONN |
| 选配 Optional | 型号 Model | 描述 Description |
| CEA-090W-HK00 | HUNTKEY 12V 90W adapter,150cm power cord | |
| 35105R800-JTU-G | 8bit GPIO Cable (DB9 Connect ) | |
| 35107YP00-JTU-G | 2*RS232 Y Cable | |
| 061001800-187-G | Wireless Card,CNVI,INTEL 9560NGW | |
| 061001E00-187-G | Wireless Card,CNVI,WIFI 6,INTEL AX200NGW, | |
| 2T71A7Y00-JTW-G | DIN-RAIL/VESA Bracket,165mm*115mm*10.5mm | |
| Module A | Module A,w/5G,w/Mini-PCIe,w/EDP | |
| Module B | Module B,w/USB3.0,w/Mini-PCIe,w/EDP | |
| Module C | Module C,w/16bit DI/O |
