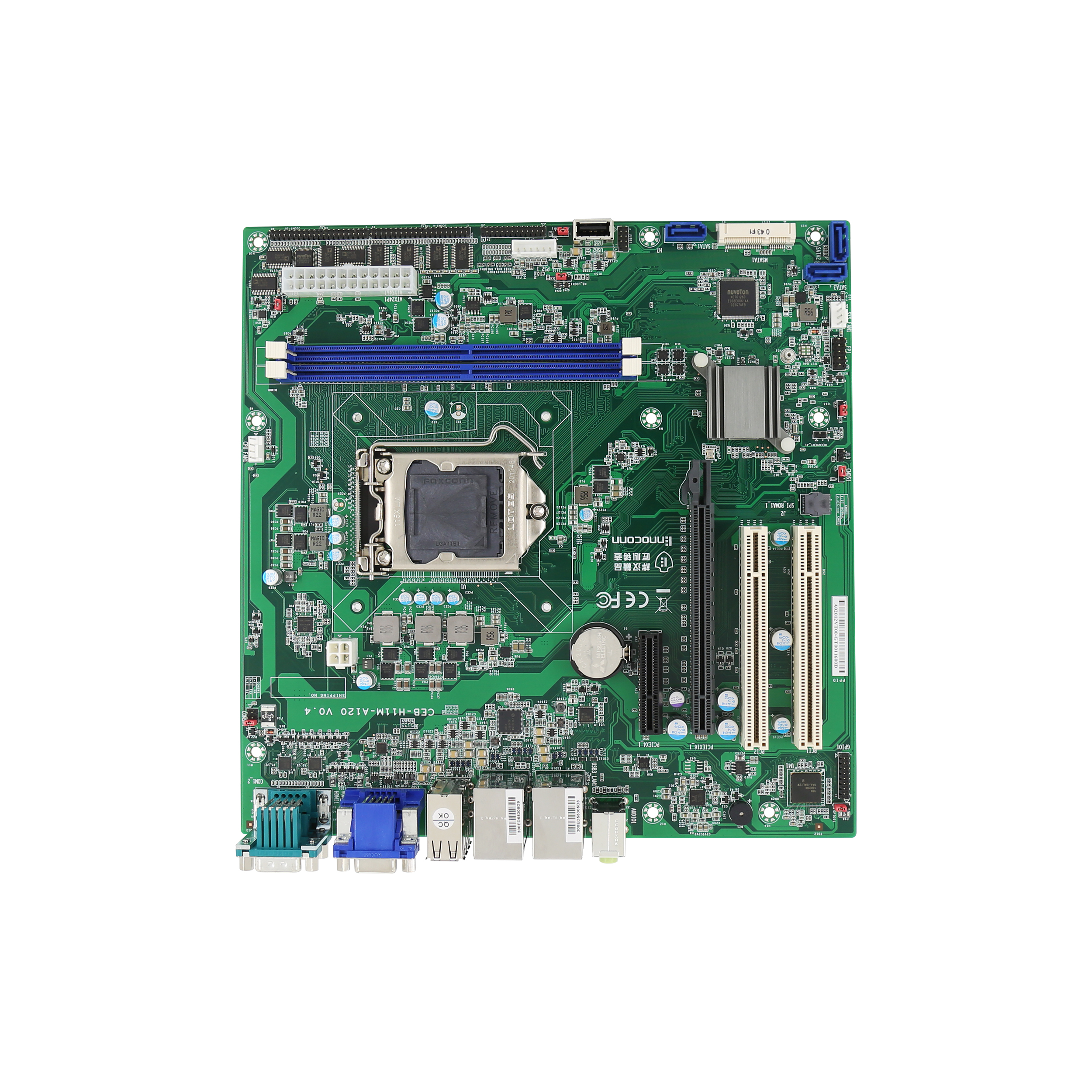

support Intel® 6th/7th Gen. CoreTM i3/i5/i7、Pentium®、Celeron® Processor
support 2 x DDR4 DIMM memory Slot, up to 32GB
support HDMI/VGA, dual display
support Ennoconn USB SR Pro Technology
support dual Intel LAN, 10 x USB, 10 x COM (2 x RS232/422/485 with Auto Flow, 8 x RS232)
support 1 x PCIe X16, 1 x PCIe X4, 2 x PCI Slot
support USB Power off under S5
| 处理器 Processor | Intel® 6th/7th Gen. Core ™ i3/i5/i7, Pentium®, Celeron® Processor, LGA1151 Socket, TDP up to 65W |
| 芯片组 Chipset | Intel® H110 |
| 内存 Memory | Dual Channel, 2 x U-DIMM Slot, DDR4 2133/1866MHz, up to 32GB |
| 存储 Storage | 3 x SATA3.0, 1 x mSATA |
| 显示 Display | Intel® HD Graphics |
| 网口 Ethernet | 1 x Intel® I210AT/I211AT GbE (10/100/1000 Mbps) 1 x Intel® I219LM GbE (10/100/1000 Mbps) |
| 音频 Audio | Realtek® ALC888S HD Audio codec, supports 5.1-channel |
| BIOS | AMI UEFI BIOS |
| 外部接口 Rear I/O | 1 x HDMI: max resolution up to 4096 x 2304@24Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz 2 x RJ45 4 x USB2.0 (USB SR Pro supported), 4 x USB3.0 (USB SR Pro supported) 2 x RS232/422/485 with Atuo Flow 1 x Line-out, 1 x Mic-in |
| 内部接口 Internal I/O | 8 x RS232 1 x USB2.0, 1 x USB2.0 (Type-A) 1 x 16 bit GPIO 1 x LPT 1 x F_Panel (Power LED, HDD LED, Power button, reset button) 1 x PS/2 (for Keyboard and Mouse) |
| 扩展接口 Expansion | 1 x PCIe X16 1 x PCIe X4 2 x PCI |
| 环境 Environment | 操作温度 Operation Temp.: 0℃ ~ 60℃ 存储温度 Storage Temp.: -40℃ ~ 85℃ 操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing 存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing |
| 电源输入 Power Input | ATX |
| 尺寸 Dimensions | 244 x 244 mm (9.6" x 9.6") |
| 操作系统 OS | 6th Gen CPU : Windows7/8.1/10, Linux 7th Gen CPU : Windows10, Linux |
| 看门狗 Watchdog Timer | System Reset, Programmable via software from 1 to 255 seconds |
| 标配 Standard | 型号 Model | 描述 Description |
| 35091QW00-0R3-G | SATA Signal Cable Assembly,400mm+/-20mm | |
| 2T680B300-G9F-G | IO SHIELDING |
| 选配 Optional | 型号 Model | 描述 Description |
| 35108YU00-0R3-G | COM7~10,COM Cable with bracket,500mm+/-20mm | |
| 480301K00-JV0-G | CPU Cooler, support 65W, LGA115X Series |
